Designing Potentials

import sys
print(sys.executable)

/home/docs/checkouts/readthedocs.org/user_builds/physics-555-quantum-technologies/conda/fall2024/bin/python3

%matplotlib inline
import numpy as np, matplotlib.pyplot as plt
import mmf_setup;mmf_setup.nbinit()

This cell adds /home/docs/checkouts/readthedocs.org/user_builds/physics-555-quantum-technologies/checkouts/fall2024/src to your path, and contains some definitions for equations and some CSS for styling the notebook. If things look a bit strange, please try the following:

  • Choose "Trust Notebook" from the "File" menu.
  • Re-execute this cell.
  • Reload the notebook.

Designing Potentials#

Consider a single particle in a 1D potential:

\[\begin{gather*} \op{H} = \frac{\op{p}^2}{2m} + V(\op{x}), \qquad \frac{-\hbar^2}{2m}\psi_n''(x) + V(x)\psi_n(x) = E_n\psi_n(x). \end{gather*}\]

Can we design the potential \(V(x)\) to obtain a desired spectrum?

Example Problem: Spectral Gap#

For example, supposed we want to consider localized solutions, so we consider solutions embedded in an infinite square well \(V(x) = \infty\) if \(x<0\) or \(L < x\). Can we design a potential \(V(x)\) with two low-energy states \(E_0 = 0\) and \(E_1 = E\) but a spectral gap \(\Delta\) so that all higher energy states \(E_{n>1} > E + \Delta\) for arbitrary large \(\Delta\)?

Let’s start with some fundamental properties of the 1D Schrödinger equation. We know that we can take the eigenstates \(\psi_n(x) = \braket{x|\psi} = \psi_n^*(x)\) to be real, and that \(\psi_{n}(x)\) has \(n\) nodes where \(\psi_n(x) = 0\). Thus, we can construct the potential from the ground state wavefunction and energy:

\[\begin{gather*} V(x) = E_0 + \frac{\hbar^2}{2m}\frac{\psi_0''(x)}{\psi_0(x)}. \end{gather*}\]

Infinite Square Well#

We start with \(V(x) = 0\). This has the well known solution

\[\begin{gather*} \psi_n(x) = \sqrt{\frac{2}{L}}\sin(k_nx), \qquad kL = \pi (1+n), \\ E_n = \frac{\hbar^2k_n^2}{2m} = \frac{\hbar^2\pi^2 (1+n)^2}{2mL^2}. \end{gather*}\]

Hide code cell source


import scipy.linalg
sp = scipy

# Check orthonormality of solution.
hbar = m = L = 1.2
Nx = 200
NE = 10

# This is a nice numerical trick: we choose Nx points between 0 and L
# such that they are separated by lattice space dx, but start and end
# dx/2 from the endpoints.  Thus (Nx-1)*dx + 2*dx/2 = Nx*dx = L.
# Choosing the endpoints to be dx/2 away from 0 and L improves the accuracy
# of numerical integration.
dx = L / Nx
x = dx/2 + np.arange(Nx)*dx
n = np.arange(NE)

k_n = np.pi*(1+n)[np.newaxis, :]/L
psi_n = np.sqrt(2/L) * np.sin(k_n*x[:, np.newaxis])

# Check orthonormality
assert np.allclose(psi_n.T.conj() @ psi_n * dx, np.eye(NE))
#plt.plot(x, psi_n)

def get_H_basis(L=1.0, Nx=200, hbar2_m=hbar**2/m):
    dx = L / Nx
    x = dx/2 + np.arange(Nx)*dx
    n = np.arange(Nx)
    k_n = np.pi*(1+n)/L
    Es = (hbar2_m * k_n**2/2)
    psis = np.sqrt(2/L) * np.sin(k_n[np.newaxis, :]*x[:, np.newaxis])

    # Not sure why we need this, but it gives an exactly orthonormal basis.
    psis[:, -1] /= np.sqrt(2)
    return x, Es, psis * np.sqrt(dx)

# 3000 -> 2292
# 2000 -> 1515
# 1000 -> 742
# 100 -> 57
# 50 -> 23
# 20 -> 4
# 10 -> 2
# Ne = 7*Nx/9 - 30
Nx = 200
Ne = int(Nx*0.77 - 20)  # Emperical number energy states accurate to eps...
x, Es, psis = get_H_basis(Nx=Nx)
assert np.allclose(psis.T.conj() @ psis, np.eye(len(x)))

# Test with half HO
# Set length so ground state fits to machine eps
a = L / np.sqrt(-np.log(np.finfo(float).eps))

# Now divide by a factor so that the Ne state fits... explain!
# Tested emperically.
a /= np.sqrt(Nx/8)
w = hbar/m/a**2
Vx = m * (w*x)**2/2
H = np.diag(Es) + (psis.T * Vx) @ psis
E_HO = hbar*w*(2*np.arange(len(Es)) + 1 + 0.5)

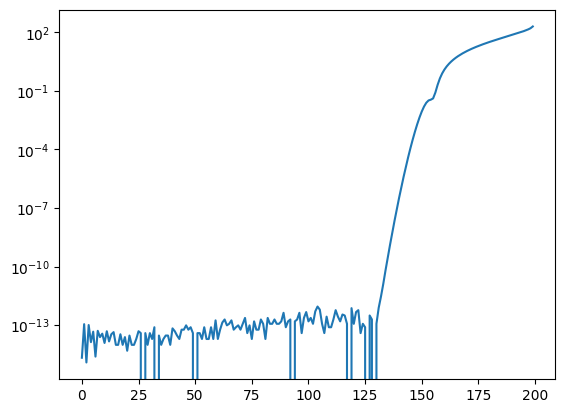

plt.semilogy(abs((sp.linalg.eigvalsh(H) - E_HO) / hbar / w))
assert np.allclose(sp.linalg.eigvalsh(H)[:Ne], E_HO[:Ne])
#display(E_HO / hbar / w)
#display(sp.linalg.eigvalsh(H) / hbar / w)

def get_spectrum(V, Nx=200):
    H = np.diag(Es) + (psis.T * V(x)) @ psis
    return sp.linalg.eigvalsh(H)
../_images/bc1fbd6a6c0724d38739335a83d3a71bc38a932353390c5e3e308436129e5824.png
from scipy.optimize import minimize
Nx = 100
x, Es, psis = get_H_basis(Nx=Nx)

Np = 10
rng = np.random.default_rng(seed=1)

bounds = np.ones((2, Np, 2))
bounds[0, :, 0] = -20.0
bounds[0, :, 1] = 20.0
bounds[1, :, 0] = 0.0
bounds[1, :, 1] = 10.0
bounds = bounds.reshape((2*Np, 2))

def pack(x, v):
    y = np.concatenate([v, dx])
    return y

def unpack(y):
    # len(y) = 2*Np
    Np = len(y) // 2
    v, dx = y[:Np], y[Np:]
    _x = np.concatenate([[0], np.cumsum(dx)]) * L / np.sum(dx)
    _v = np.concatenate([[0], v])
    return _x, _v

def gap(y):
    _x, _v = unpack(y)
    Vx = np.interp(x, _x, _v)
    H = np.diag(Es) + (psis.T * Vx) @ psis
    _Es = sp.linalg.eigvalsh(H)[:3]
    dEs = np.diff(_Es)
    gap = dEs[1]/dEs[0]
    print(gap, _Es)
    return -gap

y0 = rng.random(size=(2, Np))
y0[0] -= 0.5
y0[0] *= bounds[0,1]
y0[1] *= bounds[-1,1]
y0 = y0.ravel()

res = minimize(gap, x0=y0, bounds=bounds)
Vx = np.interp(x, *unpack(res.x))
H = np.diag(Es) + (psis.T * Vx) @ psis
_Es, _Vs = sp.linalg.eigh(H)
Psis = psis @ _Vs[:, :3]
plt.close('all')
plt.plot(x, Vx, x, Psis*abs(Vx.max()) + _Es[None, :3])

Transfer Matrix#

Now consider the potential to be a series of \(S\) steps of height \(V_s\) over \(S\) regular intervals:

\[\begin{gather*} V(x) = \begin{cases} V_s & \left.\frac{sL}{S} < x < \frac{(s+1)L}{S}\right|_{s=0}^{S-1}\\ \infty & x < 0 \text{ or } L < x. \end{cases} \end{gather*}\]

This problem can be solved using a transfer-matrix approach. If the potential \(V(x) = V_s\) is constant for \(0<x<a\), then the solution with energy \(E_s\) must satisfy:

\[\begin{gather*} \psi(x) = A e^{\I k_s x} + B e^{-\I k_s x}, \qquad k_s = \frac{\sqrt{2m(E_s - V_s)}}{\hbar}. \end{gather*}\]

Since the Schrödinger equation is second order, to “propagate” the wavefunction \(\psi(x)\) from \(x=0\) to \(x=a\), we need two initial conditions at \(x=0\), which we package as an array. For example:

\[\begin{gather*} \vec{\Psi}(x) = \begin{pmatrix} \psi(x)\\ \psi'(x) \end{pmatrix}. \end{gather*}\]

Using the exact solution, and a little symbolic manipulation, we can write:

\[\begin{align*} \vec{\Psi}(x+a) &= \overbrace{\begin{pmatrix} \cos(k_sa) & \sin(k_sa)/k_s\\ -k_s\sin(k_sa) & \cos(k_sa) \end{pmatrix} }^{\mat{T_s}}\vec{\Psi}(x),\\ &= \overbrace{\begin{pmatrix} \cosh(\kappa_sa) & \sinh(\kappa_s a)/\kappa_s\\ \kappa_s\sinh(\kappa_s a) & \cosh(\kappa_s a) \end{pmatrix} }^{\mat{T_s}}\vec{\Psi}(x). \end{align*}\]

The second (equivalent) form is useful if \(E_s < V_s\):

\[\begin{gather*} \kappa_s = \I k_s = \frac{\sqrt{2m(V_s - E_s)}}{\hbar}. \end{gather*}\]

Hide code cell content


# Some code to test this formula.

import sympy
sympy.var('A, B, k, a, x, x_0, psi0, psia, dpsia')
dpsi0 = sympy.var(r"\psi'_0")

def psi(x):
    return A*sympy.exp(sympy.I*k*x) + B*sympy.exp(-sympy.I*k*x)

_dpsi = psi(x).diff(x)
dpsi = lambda _x: _dpsi.subs(x, _x)

eqs = [psi(x_0)-psi0, psi(x_0+a)-psia, dpsi(x_0)-dpsi0, dpsi(x_0+a)-dpsia]
res = sympy.solve(eqs, [A, B, psia, dpsia])
psia, dpsia = res[psia], res[dpsia]
T = sympy.simplify(
  sympy.Matrix([
    [psia.coeff(psi0), psia.coeff(dpsi0)],
    [dpsia.coeff(psi0), dpsia.coeff(dpsi0)]]))
display(T)
\[\begin{split}\displaystyle \left[\begin{matrix}\cos{\left(a k \right)} & \frac{\sin{\left(a k \right)}}{k}\\- k \sin{\left(a k \right)} & \cos{\left(a k \right)}\end{matrix}\right]\end{split}\]

Since the wavefunction and derivative must be continuous across different regions, we can transfer the wavefunction over a series of intervals by simply multiplying the matrices \(\mat{T}=\mat{T_{S-1}}\cdots\mat{T_2}\mat{T_1}\mat{T_0}\).

Delta Functions#

This transfer matrix approach can also be used with Dirac delta-function potentials \(V(x) = α δ(x)\). Across a delta-function, the wavefunction remains continuous, but the derivative can change, resulting in a kink. This can be found by integrating the Schrödinger equation across the delta-function, which we take at \(x=0\) for simplicity

\[\begin{gather*} \int_{-ε}^{ε}\d{x}\left\{ \frac{-\hbar^2}{2m}Ψ''(x) + α δ(x) Ψ(x) - EΨ(x) \right\} = \\ \frac{-\hbar^2}{2m}\bigl(Ψ'(ε) - Ψ'(-ε)\bigr) + α Ψ(0) = 0.\\ Ψ'(ε) = Ψ'(-ε) + \frac{2mα Ψ(0)}{\hbar^2}. \end{gather*}\]

Hence, the transfer matrix across a delta-function is:

\[\begin{gather*} \mat{T_{δ}} = \begin{pmatrix} 1 & 0\\ \frac{2mα}{\hbar^2} & 1 \end{pmatrix} \end{gather*}\]

Note

The more common approach for the transfer-matrix is to express

\[\begin{gather*} \psi_s(x) = \begin{pmatrix} e^{\I k_s x} & e^{-\I k_s x} \end{pmatrix} \overbrace{ \begin{pmatrix} A_s\\ B_s \end{pmatrix}}^{\vec{\phi}_s},\\ \psi_s'(x) = \begin{pmatrix} \I k_s e^{\I k_s x} & -\I k_s e^{-\I k_s x} \end{pmatrix} \vec{\phi}_s. \end{gather*}\]

Matching the boundary conditions at \(x=a\) between intervals \(s\) and \(s+1\) gives

\[\begin{gather*} \psi_s(a) = \psi_{s+1}(a), \qquad \psi'_s(a) = \psi'_{s+1}(a),\\ \begin{pmatrix} e^{\I k_s a} & e^{-\I k_s a} \end{pmatrix}\vec{\phi}_s = \begin{pmatrix} e^{\I k_{s+1} a} & e^{-\I k_{s+1} a} \end{pmatrix}\vec{\phi}_{s+1}, \\ \begin{pmatrix} \I k_s e^{\I k_s a} & -\I k_s e^{-\I k_s a} \end{pmatrix}\vec{\phi}_s = \begin{pmatrix} \I k_{s+1}e^{\I k_{s+1} a} & -\I k_{s+1}e^{-\I k_{s+1} a} \end{pmatrix}\vec{\phi}_{s+1}. \end{gather*}\]

Solving for \(\vec{\phi}_{s+1}\) we have (see [Walker and Gathright, 1992]: James S. Walker was a professor in the WSU Physics department):

\[\begin{gather*} \vec{\phi}_{s+1} = \frac{1}{2} \begin{pmatrix} 1 + \frac{k_s}{k_{s+1}} & 1 - \frac{k_s}{k_{s+1}} 1 - \frac{k_s}{k_{s+1}} & 1 + \frac{k_s}{k_{s+1}} \end{pmatrix} \vec{\phi}_{s} = \frac{1}{2} \begin{pmatrix} 1 + \frac{\kappa_s}{\kappa_{s+1}} & 1 - \frac{\kappa_s}{\kappa_{s+1}} 1 - \frac{\kappa_s}{\kappa_{s+1}} & 1 + \frac{\kappa_s}{\kappa_{s+1}} \end{pmatrix} \vec{\phi}_{s} \end{gather*}\]

Then

\[\begin{gather*} \psi_s(x) = A_se^{\I k_s x} + B_se^{-\I k_s x}\\ \psi'_s(x) = \I k_s (A_se^{\I k_s x} - B_se^{-\I k_s x}), \end{gather*}\]

so we can write:

\[\begin{gather*} \vec{\Psi}_s(x) = \begin{pmatrix} e^{\I k_s x} & e^{-\I k_s x}\\ \I k_s e^{\I k_s x} & - \I k_s e^{-\I k_s x} \end{pmatrix} \vec{\phi}_s \end{gather*}\]

Thus, we can express \(\psi(a)\) and \(\psi'(a)\) in terms of \(\psi(0)\) and \(\psi'(0)\):

\[\begin{gather*} \psi(0) = A + B\\ \psi'(0) = \I k (A - B)\\ \psi(a) = Ae^{\I k a} + Be^{-\I k a}\\ \psi'(a) = \I k (Ae^{\I k a} - Be^{-\I k a}) \end{gather*}\]

If \(V(x) = V_s\) is constant for \(x_0 < x < x+a\) and we know \(\psi_s(x_0)\) and \(\psi_s'(x_0)\), then we can integrate the Schrödinger equation to obtain \(\psi_s(x)\) throughout the interval.

To see how this works, consider the interval from \(x_0 = 0\) to \(x=0\). The solution must have the form:

\[\begin{gather*} \end{gather*}\]

Let \(\psi(x)\)

Write the wavefunction corresponding to energy \(E=E_n\) in each interval as:

\[\begin{gather*} \psi_n(x) = \begin{cases} \psi_s(x) & \left.\frac{sL}{S} < x < \frac{(s+1)L}{S}\right|_{s=0}^{S-1}\\ 0 & x < 0 \text{ or } L < x. \end{cases}, \\ \psi_s(x) = A_s \sin(k_s x) + B_s \cos(k_s x), \qquad k_s = \frac{\sqrt{2m (E_n - V_s)}}{\hbar}. \end{gather*}\]

If the wavefunction is $

Delta-Functions#

Here is one solution – a symmetric infinite square well with three delta function potentials,

\[\begin{gather*} V(x) = \begin{cases} \alpha \delta\Bigl(\abs{x}-a\Bigr) + \beta \delta(x) & \abs{x} < L\\ \infty & L < \abs{x} \end{cases}, \qquad a = \frac{L}{2}. \end{gather*}\]

This is easily solved with our transfer matrix approach:

import numpy as np
from ipywidgets import interact

a = hbar = m = 1.0
Nx = 256

E4 = hbar**2 * np.pi**2 / 2 / m / a**2

@interact(E=(0, 2*E4, 0.01))
def get_psi(E=E4, alpha=10.0, beta=20.0):
    k = np.sqrt(2*m*abs(E))/hbar
    if E < 0:
        def Ts(x):
            c, s = np.cosh(k*x), np.sinh(k*x)
            return np.array(
                [[c, s/k],
                 [k*s, c]])
    else:
        def Ts(x):
            c, s = np.cos(k*x), np.sin(k*x)
            return np.array(
                [[c, s/k],
                 [-k*s, c]])
    Ta = np.array(
        [[1, 0],
         [2*m*alpha/hbar**2, 1]])
    Tb = np.array(
        [[1, 0],
         [2*m*beta/hbar**2, 1]])

    Psis = [[0, 1]]
    Psis.append(Ta @ Ts(a) @ Psis[-1])
    Psis.append(Tb @ Ts(a) @ Psis[-1])
    Psis.append(Ta @ Ts(a) @ Psis[-1])
    Psis.append(Ts(a) @ Psis[-1])
    x = np.linspace(0, a, Nx//4)[:-1]
    psi = np.concatenate([np.einsum('abx,b->ax', Ts(x), _Psi)[0]
                          for _Psi in Psis[:-1]])
    x = np.concatenate([x + _n*a for _n in range(len(Psis)-1)]) - 2*a
    psi = np.concatenate([psi, [(Ts(a) @ Psis[-2])[0]]])
    x = np.concatenate([x, [2*a]])

    fig, ax = plt.subplots()
    ax.plot(x, psi)
    ax.axhline([0], ls='--', c='k')

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[5], line 2
      1 import numpy as np
----> 2 from ipywidgets import interact
      4 a = hbar = m = 1.0
      5 Nx = 256

ModuleNotFoundError: No module named 'ipywidgets'

def get_Ts(E, x=a):
    k = np.sqrt(2*m*abs(E))/hbar
    if E == 0:
        Ts = np.array(
            [[1, x],
             [0, 1]])
    elif E < 0:
        c, s = np.cosh(k*x), np.sinh(k*x)
        Ts = np.array(
            [[c, s/k],
             [k*s, c]])
    else:
        c, s = np.cos(k*x), np.sin(k*x)
        Ts = np.array(
            [[c, s/k],
             [-k*s, c]])
    return Ts

@np.vectorize
def f(E=1.0, alpha=1.0, beta=2.0):
    Ts = get_Ts(E=E, x=a)
    Ta = np.array(
        [[1, 0],
         [2*m*alpha/hbar**2, 1]])
    Tb = np.array(
        [[1, 0],
         [2*m*beta/hbar**2, 1]])

    Psi = Ts @ Ta @ Ts @ Tb @ Ts @ Ta @ Ts @ [0, 1]
    return Psi[0]

@interact
def go(alpha=10.0, beta=10.0):
    Es = np.linspace(0, 10, 256)
    fig, ax = plt.subplots()
    ax.plot(Es, f(Es, alpha=alpha, beta=beta))
    ax.axhline([0], ls='--', c='k')
    ax.axvline([E4])
    ax.set(ylim=(-1, 1))

---------------------------------------------------------------------------
NameError                                 Traceback (most recent call last)
Cell In[6], line 32
     29     Psi = Ts @ Ta @ Ts @ Tb @ Ts @ Ta @ Ts @ [0, 1]
     30     return Psi[0]
---> 32 @interact
     33 def go(alpha=10.0, beta=10.0):
     34     Es = np.linspace(0, 10, 256)
     35     fig, ax = plt.subplots()

NameError: name 'interact' is not defined

import sympy
sympy.var('a, alpha, beta, x, hbar, m, E')
#sympy.var('E', positive=True)
#a = hbar = m = 1
hbar2_m = hbar**2/m
a = hbar2_m = 1

def get_Ts(E=E, a=a, V=0):
    k = sympy.sqrt(2*(V-E)/hbar2_m)
    c, s = sympy.cos(k*a), sympy.sin(k*a)
    return sympy.Matrix([
        [c, s/k],
        [-k*s, c]])

def get_Td(a):
    return sympy.Matrix([
        [1, 0],
        [2*a/hbar2_m, 1]])

Ta, Tb, Ts = get_Td(alpha), get_Td(beta), get_Ts(E, a=a)
psi_R = (Ts * Ta * Ts * Tb * Ts * Ta * Ts * sympy.Matrix([[0],[1]]))[0,0]
res = sympy.simplify(psi_R)
res
